My Self-Hosted Homelab

I run a self-hosted homelab that handles everything from media and photos to AI automation and personal cloud storage — all from a home server, exposed securely to the internet via a VPS in Singapore. This page documents the full setup: what runs, how it connects, and why.

Architecture Overview

The setup has two physical layers: a home server (sienabot, Ubuntu + Docker) that runs all the services, and a VPS (SG-Ubuntu-pangolin) that acts as the secure public entry point. Traffic flows through Gerbil (WireGuard tunnel) and Pangolin (reverse proxy) on the VPS, down to Newt on the home server — meaning no inbound ports are ever opened on the home network.

Authentik provides SSO across most services. Gluetun routes selected containers through a VPN. Traefik handles routing on the VPS side.

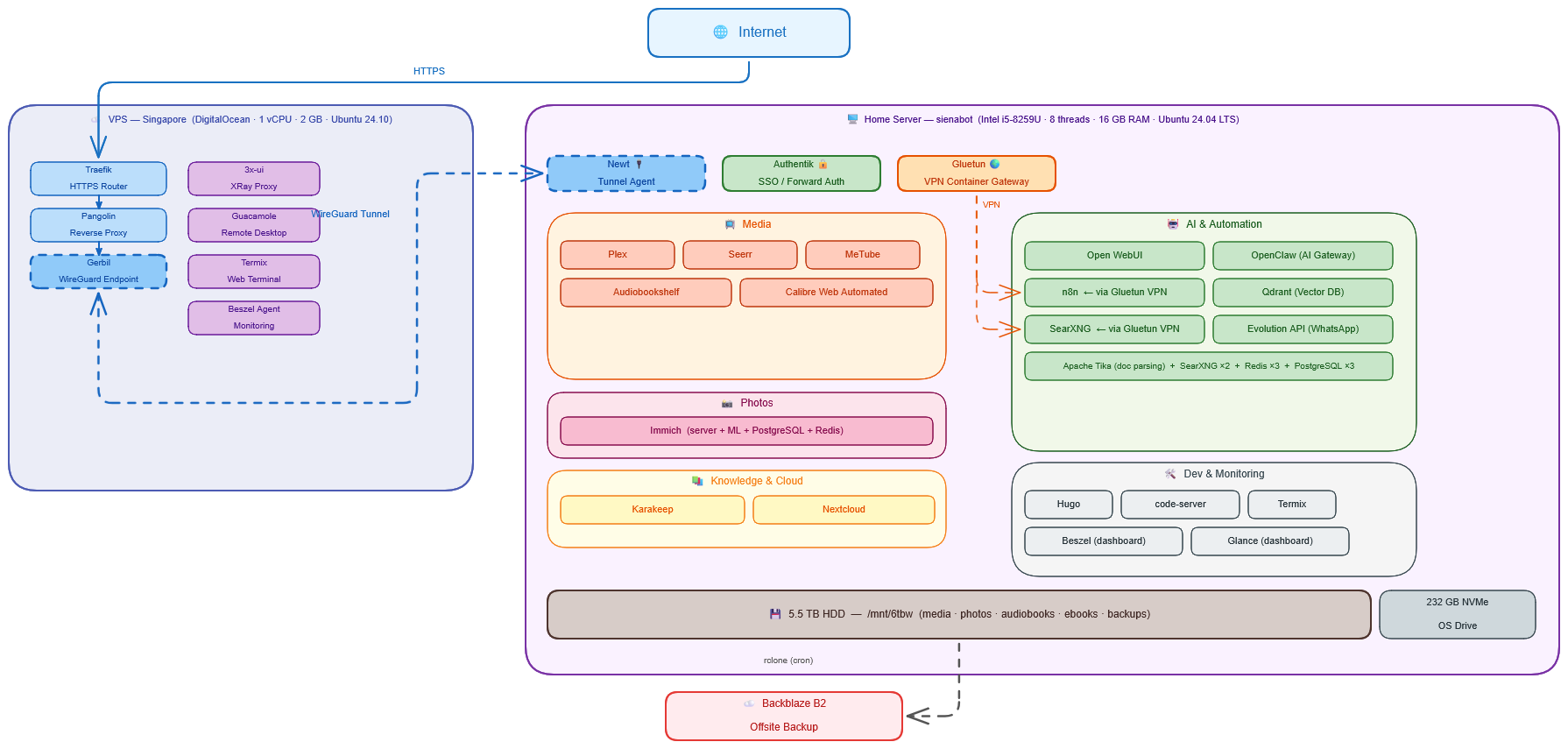

Architecture Diagram

The Two Machines

🖥️ Home Server — sienabot

The main workhorse. Runs Ubuntu with Docker Compose managing ~35 containers across media, AI, photos, cloud storage, and dev tooling. OS on a fast NVMe SSD; all data on a 5.5TB HDD.

☁️ VPS — SG-Ubuntu-pangolin (Singapore)

A lightweight DigitalOcean droplet acting purely as the public-facing gateway. It runs the Pangolin/Gerbil tunnel stack and Traefik, so the home server’s IP is never exposed. Also hosts 3x-ui for an XRay proxy and Guacamole for browser-based remote desktop access.

Networking & Access

The entire access model is built around keeping the home server private:

• Gerbil (on VPS) opens a WireGuard tunnel endpoint
• Newt (on home server) connects outbound to Gerbil — no inbound ports on the home router
• Pangolin manages tunnel routing and proxies requests through to home services
• Traefik handles HTTPS routing and certificates on the VPS
• Authentik sits in front of all externally-accessible services as a forward-auth SSO layer
• Gluetun routes specific containers (n8n, SearXNG) through a commercial VPN
• 3x-ui provides an XRay/VLESS proxy on the VPS for additional private tunnelling
• Guacamole enables full browser-based RDP/VNC remote desktop into the home server

Services

📺 Media

• Plex — Central media server for films, TV, and music. Streams to any device, locally or remotely.
• Seerr — Media request management. Family members can request content through a clean UI.
• MeTube — Web front-end for yt-dlp. One-click downloads from YouTube and other platforms straight to the media drive.
• Audiobookshelf — Self-hosted audiobook and podcast server with full mobile app support.
• Calibre Web Automated — Ebook library with automatic metadata, cover fetching, and Kindle delivery.

📸 Photos

• Immich — Self-hosted Google Photos replacement. Handles automatic phone backup, facial recognition, smart albums, and sharing. Runs a dedicated machine-learning container for on-device search and face grouping.

🤖 AI & Automation

• Open WebUI — Local AI chat interface supporting multiple LLM backends. Apache Tika handles document parsing for RAG workflows.
• OpenClaw — Custom AI gateway and orchestration layer (personal project).
• n8n — Workflow automation engine. Powers the Family Bot (WhatsApp/Telegram), scheduled jobs, and various integrations. Routed through Gluetun VPN.
• Qdrant — Vector database, used as the memory and retrieval layer for AI agents.
• SearXNG — Self-hosted meta search engine. Two instances: one for personal browsing, one as a tool for AI agents.
• Evolution API — WhatsApp API bridge used by n8n for messaging automation.

📚 Knowledge & Cloud

• Karakeep — Self-hosted bookmark and read-later manager. Full-text search via Meilisearch, web archiving via headless Chrome.
• Nextcloud — Personal cloud: file storage, calendar, and contacts sync across all devices.

🛠️ Dev & Monitoring

• Hugo — Static site server for local development of this website.
• code-server — VS Code in the browser. Full development environment accessible from any device.
• Termix — Web-based terminal. Quick server access without a local SSH client. Runs on both home server and VPS.
• Beszel — Lightweight monitoring dashboard. Tracks CPU, memory, disk, and network. Agent runs on both machines.
• Glance — Personal start-page aggregating RSS feeds, service status, and quick links.

Storage & Backup

All data lives on a single 5.5TB HDD (/mnt/6tbw), organised into folders by type: media, photos, audiobooks, ebooks, and backups. The OS runs separately on a 232GB NVMe SSD, keeping it fast and isolated from data.

Offsite backup runs via rclone to Backblaze B2 on a cron schedule, with Telegram notifications on completion or failure.

Security Model

The home server IP is never public. All external access tunnels through the VPS.

• All traffic enters via Traefik on the VPS → Pangolin → Gerbil/WireGuard → Newt on home server
• Authentik SSO in front of all externally-accessible services
• SSH hardened: key-only auth, root login disabled
• Gluetun isolates sensitive containers behind a VPN
• 3x-ui provides an additional XRay proxy layer for private tunnelling
